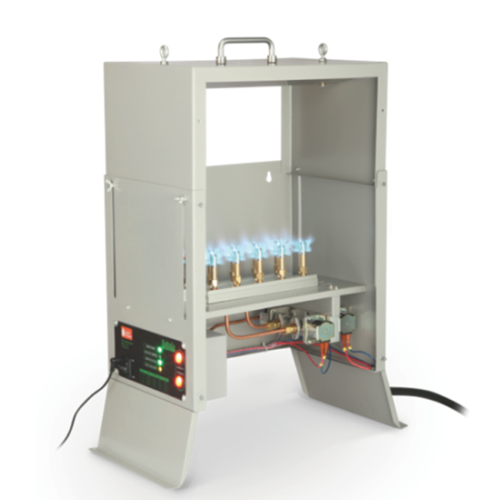

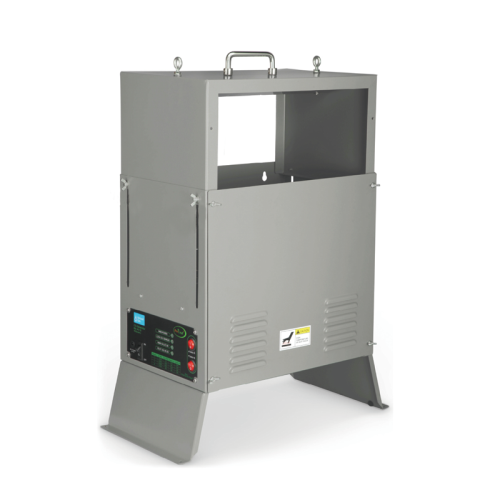

CO2 Generator

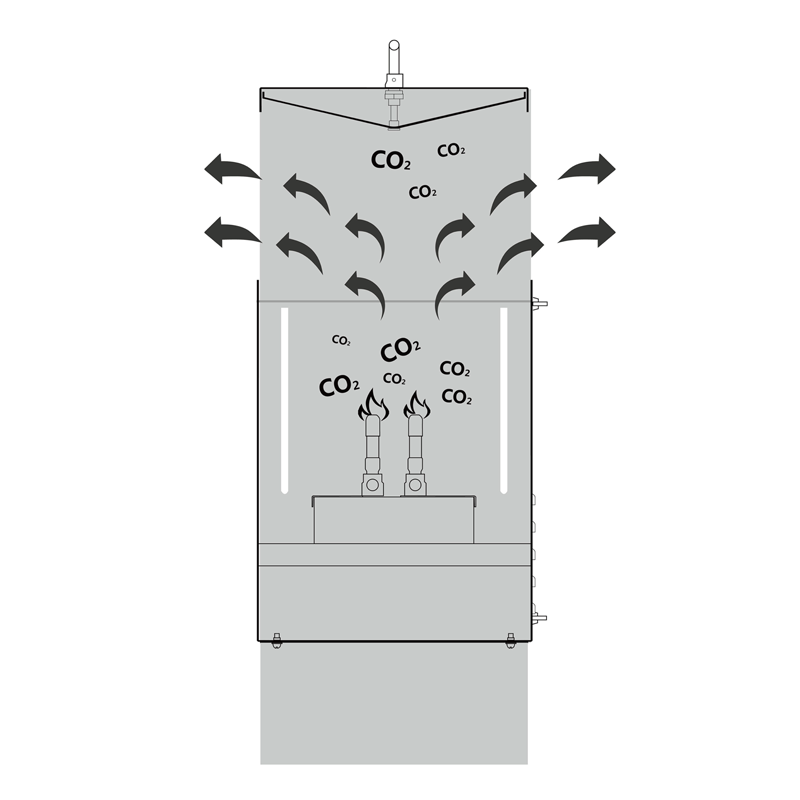

The Co2 Generators convert liquid Propane (LP)or natural gas (NG) into supplemental carbon dioxide for accelerated growth.

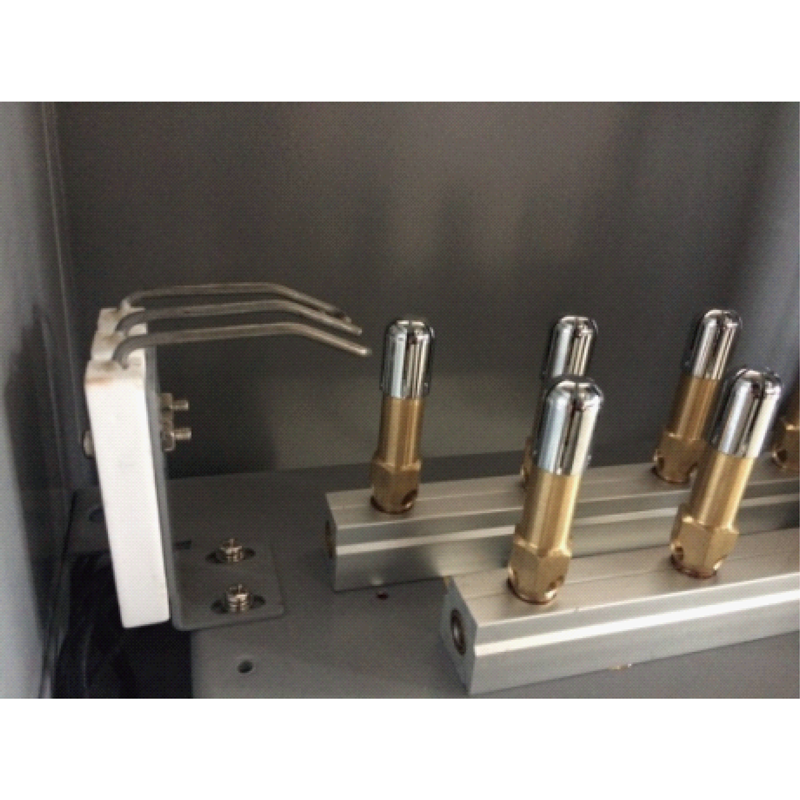

BBL-4,BBL-8, and BBL-10 feature four, eight and ten brass burners, respectfully, with included burner plugs allowing Co2 output modification.
The 10-burner BBL-10 offers enchanced functionality with convenient selector switches operating two, five , seven, or all 10 burners at a time.

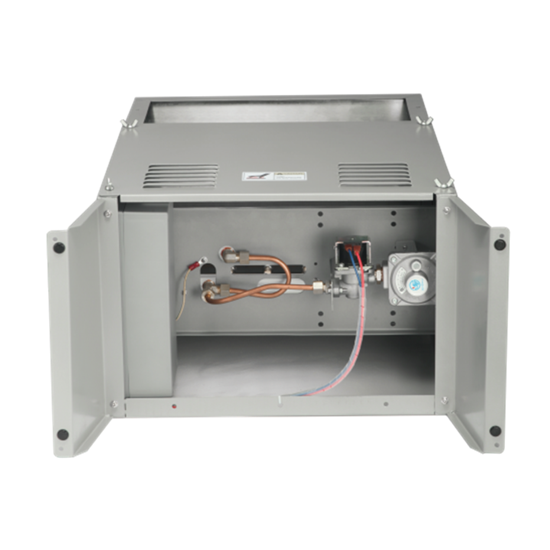

A full range of safety features ensure reliable operation-electronic ignition replaces an open pilot flame,
solenoid valve to restrict gas if the burners do not ignite, and a tip-over switch which cuts power if the unit is not upright.
Integrated LEDs indicate operational status. Each model comes complete with a gas regulator, 3.66m hose,
power adapter and hanging hardware.
Input power | 240 V to 24 VDC adapter | |||||
NG Pressure | 1.15k Pa | |||||
LP Pressure | 2.8k Pa | |||||
Model | LP/NG-4 | LP/NG-8 | LP/NG-10 | |||
Burners | 4 | 8 | 10 | 2 | 5 | 7 |
kW | 3 | 6 | 7 | |||
m3/h | 0.3 | 0.6 | 0.75 | 0.15 | 0.38 | 0.54 |
Weight | 10 | 10.5 | 11.6 | |||
Size | 380*250*510mm |
